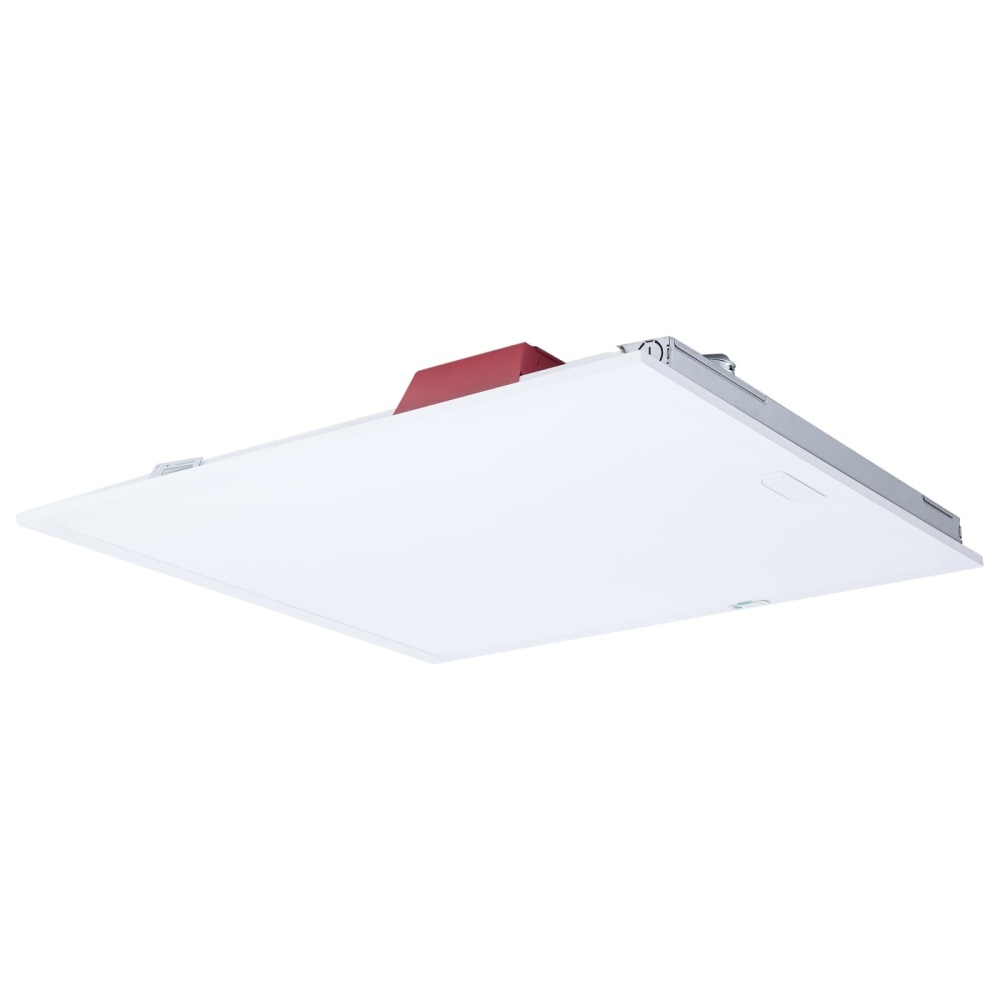

20/30/40 Wattage Selectable LED 2ft x 2ft Backlit Panel; 35K/4K/5K CCT Selectable; Emergency (65/1665)
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
198
00
/
/ 1
($198.00 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
65/1665
Dimensions:
Height: 1.38"
Width: 23.74"
White
Availability:
- Manufacturer may be Out Of Stock.
Recommended Items
Description
Details
Downloads
20/30/40 Wattage Selectable LED 2ft x 2ft Backlit Panel; 35K/4K/5K CCT Selectable; Emergency Battery; 120-277 Range Voltage
Category:
Flush Mounts
Subcategory:
Other Flush Mounts
Option:
LED
, Prop 65
Category:
Flat Panel
Sub Category:
Backlit Emergency
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Neutral White to Natural Light
Dimmable:
Yes-Dimmable
Each Height:
24.69
Each Length:
24.69
Each Width:
2.91
Length:
23.74
Lumens:
2500L/3750L/5000L
Tariff Code:
9405.11.6020
Warranty:
5-Years
Amps:
0.070-0.340A
ANSI Base:
Integrated
BAA Compliant:
No
Battery Chemistry:
LiFePO4
Beam Angle:
120
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Connection:
Hardwire
Country Of Origin:
Mexico
CRI:
80+
Dimmable Down To:
100 to 10 percent
Dimmable Function:
0-10V Dimming
DLC Classification:
Premium
DLC Primary Use:
2x2 Luminaires for Ambient Lighting of Interior Commercial Spaces
Each Cube:
1.0266
Each Quantity:
1
Efficacy:
125.00 LPW
FCC Compliant:
Yes
Feature 1:
Field Selectable - 3 CCT and 3 Wattage
Feature 2:
2X2 Panel
Feature 3:
Emergency Battery Backup Model
Feature 4:
120-277 Voltage
Feature 5:
Steel Body with Die-cast Aluminum Trim for Seamless Corners
Feature 6:
TAA Compliant
Feature 7:
Damp Location Rated
Feature 8:
5 Year Warranty
Feature 9:
50,000 Hour Functional Life
Finish Family:
White
Fixture shape:
Square
Has Camera:
No
Has Emergency Battery:
Yes
Incandescent Equivalent:
200W
Indoor Outdoor:
Indoor
IOT Enabled:
No
IP Rating:
IP20
Lens Finish:
White
Lens Material:
Polystyrene (PS)
Long Description:
The SATCO NUVO 65-1665 Backlit Panel provides dependable illumination with selectable wattages of 20W, 30W, or 40W and universal voltage operation at 120–277V. This 2x2 model includes an integrated emergency battery that delivers 90 minutes of runti
Material:
Die-Cast Aluminum
Mounting Procedure:
Ceiling
Operating Frequency:
50/60Hz
Operating Temp:
-17C (+1.4F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Panel Size:
2x2
Power Factor:
0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO Backlit Panels deliver reliable performance with the flexibility to suit a wide range of applications. Available in six standard and six emergency models, these panels come in 1x4, 2x2, and 2x4 sizes, with universal voltage operation at 120â€
Safety Listing:
cULus - Certified
Short Description:
2X2 LED EM BACKLIT FLAT PANEL
Temperature (CCT):
3500K/4000K/5000K
Title 20 Compliant:
Yes
Title 24 Compliant:
No
Total Harmonic Distortion:
<20%
Wattage Selectable:
Yes
Weight Lb.:
6.5
