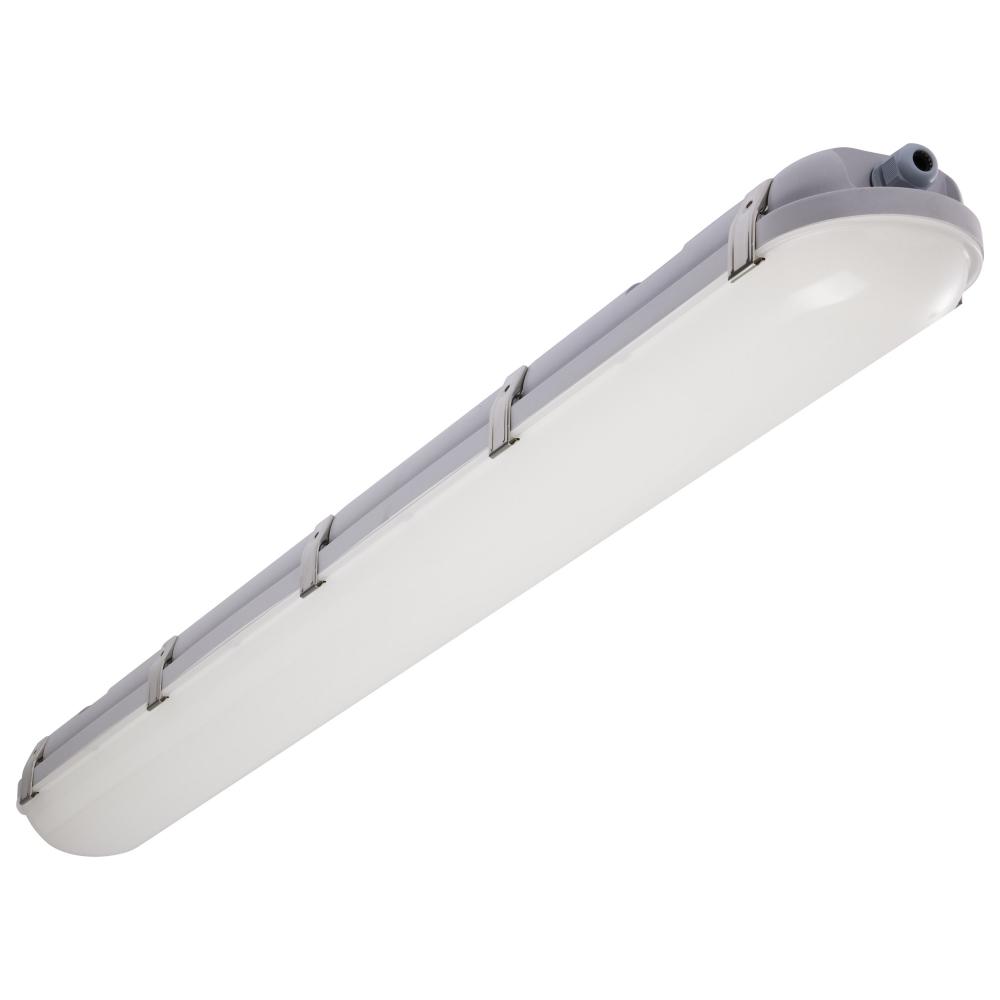

4 Foot; Vapor Proof Linear Fixture; CCT & Wattage Selectable; IP65 and IK08 Rated; 0-10V Dimming; (65/821R1)
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
146
00
/
/ 1
($146.00 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
65/821R1
Dimensions:
Height: 3.46"
Width: 4.92"
Gray
Availability:
- Manufacturer has 1040 items available.
Recommended Items
Description
Details
Downloads
4 Foot; Vapor Proof Linear Fixture; CCT & Wattage Selectable; IP65 and IK08 Rated; 0-10V Dimming; 120V-347V
Category:
Utility
Subcategory:
Other Utility
Finish:
Gray
Option:
LED
, Prop 65
Lumens:
3300+
Kelvin:
4001-4500
Category:
Linear
Sub Category:
Vapor Proof
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm to Cool White
Dimmable:
Yes-Dimmable
Each Height:
3.94
Each Length:
49.61
Each Width:
5.71
Length:
47.24
Lumens:
5360L-7991L
Tariff Code:
9405.42.6000
Warranty:
5-Years
Amps:
0.333-0.115/0.417-0.144/0.500-0.173A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
120
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Country Of Origin:
Thailand
CRI:
80+
Dimmable Down To:
100 to 20 percent
Dimmable Function:
0-10V Dimming
DLC Classification:
Standard; Standard
DLC Primary Use:
Direct Linear Ambient Luminaires; Low-Bay Luminaires for Commercial and Industrial Buildings
Each Cube:
0.6459
Each Quantity:
1
Efficacy:
134.00/133.51/133.18 LPW
FCC Compliant:
Yes
Feature 1:
Field Selectable - 3 CCT and 3 Wattage
Feature 2:
4 foot
Feature 3:
Vapor Proof Model
Feature 4:
120-347 Voltage
Feature 5:
Durable, Gray Polycarbonate Material
Feature 6:
IP65 & IK08 Rated
Feature 7:
Wet Location Rated
Feature 8:
5 Year Warranty
Feature 9:
50,000 Hour Functional Life
Finish Family:
Gray
Fixture shape:
Linear
Flicker Free:
No
Has Camera:
No
Has Driver:
Yes
Has Emergency Battery:
No
HID Equiv:
125W-150W
Impact Rating (IK):
IK08
Incandescent Equivalent:
300W-400W
Indoor Outdoor:
Indoor;Outdoor
IOT Enabled:
No
IP Rating:
IP65
JA8 Compliant:
No
Lens Finish:
Opaque
Lens Material:
Polycarbonate (PC)
Long Description:
The SATCO NUVO 65-821R1 4 foot Vapor Proof LED fixture combines durability with versatility for challenging installations. With field-selectable wattages of 40W, 50W, or 60W and 3 CCT selectable options, it adapts to diverse lighting needs. Its rugged IP65
Material:
Polycarbonate (PC)
Mounting Procedure:
Ceiling/Wall
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-40C (-40F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
>0.96
Quantity In Pack:
1
Rated For Vapor Tight Fixture:
Yes
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
The SATCO NUVO Vapor Proof LED fixture series delivers durability, versatility, and performance for demanding environments. All models feature 3 CCT selectable options, operate on a wide 120-347V range, and are built with rugged IP65 and IK08 construction.
Safety Listing:
cETLus - Listed
SDS class:
LED_Fixture
Short Description:
4' LINEAR VAPOR PROOF
Temperature (CCT):
3000K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
17.60%
Wattage Selectable:
Yes
Weight Lb.:
5.07
