11T5/LED/24-850/DR (S19948)
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
15
90
/
/ 1
($15.90 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
S19948
Dimensions:
Width: 0.63"
Availability:
- Manufacturer has 3000 items available.
Description
Details
Downloads

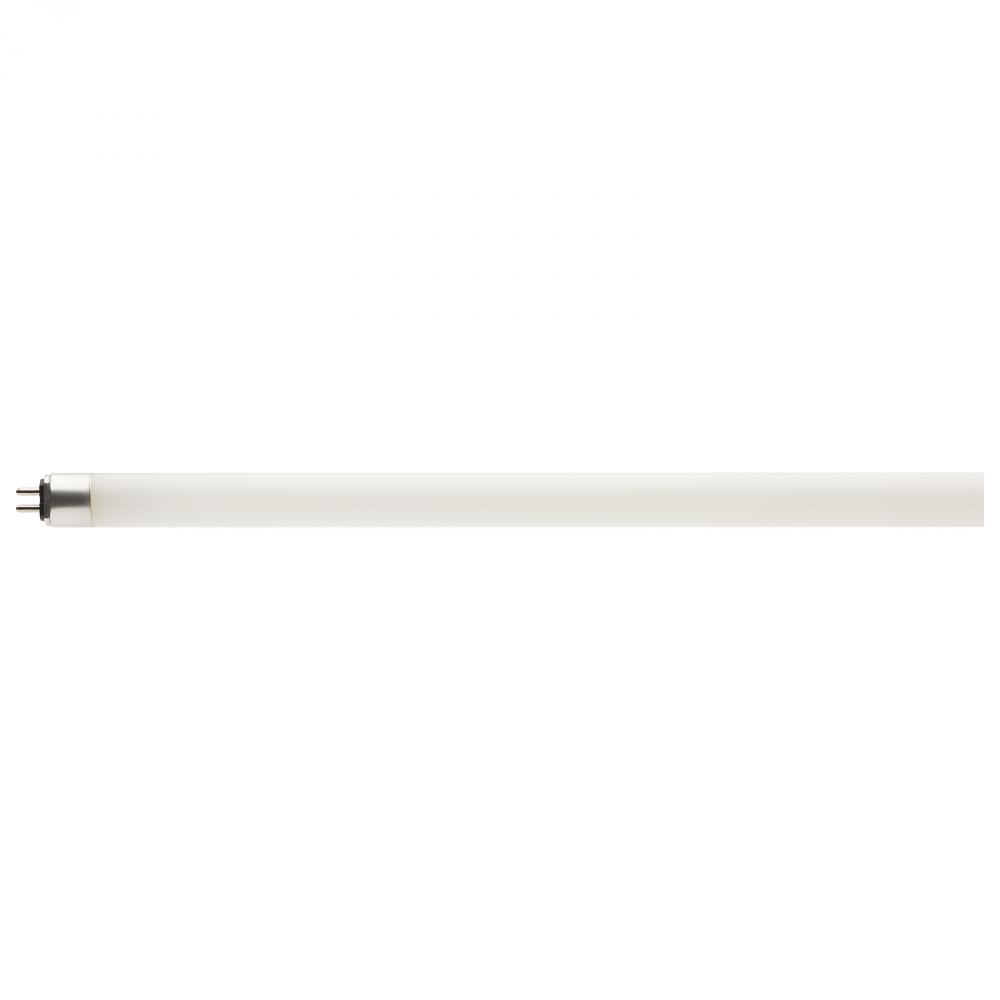

11 Watt; 2 Foot; T5 LED; Miniature Bi Pin Base; 5000K; Type A; 1400 Lumens; 120-277 Volt
Category:
Lamps
Subcategory:
LED Lamps
Category:
LED
Sub-Category:
LED T5
Volts:
120V-277V
Bulb Hours:
50000
Bulb Kelvin:
5000K
Bulb Shape:
T5
Diameter:
0.63
Dimmable:
Yes-Dimmable
Harmonized Codes:
8539.52.0051
Length:
22.5
Lumens:
1400L
Ship Carton Height:
0.65
Ship Carton Length:
22.17
Ship Carton Width:
0.65
Ship Weight:
0.13
Warranty:
5 Year Limited - T5 LED Bulbs
Weight:
0.13
Additional Info:
Light Emitting Area of 325 degrees; System Wattage (Type A) - 14W
BAA Compliant:
No
Ballast Bypass Direct:
Direct
Ballasting Requirements:
Ballast required
Beam Spread:
185
Bulb ANSI Base:
G5
Bulb Base:
Miniature Bi Pin
Bulb Finish:
White
Burning Position:
Universal
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Natural Light
Country of Origin:
China
CRI:
82
Dimmable Function:
Only in Type A mode; Check Ballast MFG for Dimmer Compatibility
Enclosure Rating:
Enclosed Rated Lamp
, Yes
FCC Compliant:
Yes
Feature 1:
Over 50 percent Energy Savings Vs. Standard T5 Systems
Feature 2:
Compatible with T5 HO Ballasts
Feature 3:
Integrated Thermal Fuse at Pins
Feature 4:
All Glass Tube Construction
Feature 5:
Damp location rated
Feature 6:
Enclosed fixture rated
Fluorescent Equivalent:
24W
Incandescent Equivalent:
50W
Indoor Outdoor:
Indoor
Lamp Ballast Type A/B/C:
Type A
Lamp Filament:
LED
Lens Material:
Glass
Location Rating:
Damp
Long Description:
SATCO| NUVO's S19948 2-foot LED Linear T5 Ballast Compatible Lamp has over 50 percent more energy savings when compared to standard T5 systems. The 11 watt, 5000K lamp provides enhanced safety thanks to the integrated thermal fuse located at the pins.
Material:
Aluminum / Glass
Nominal Length:
24
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Pack Type:
Box
Power Factor:
0.9
Quantity In Pack:
1
Rated For Vapor Tight Fixture:
No
RoHS Compliant:
Yes
SDS class:
LED_Lamp
Technology:
LED
Wattage Selectable:
No
Watts:
11W
