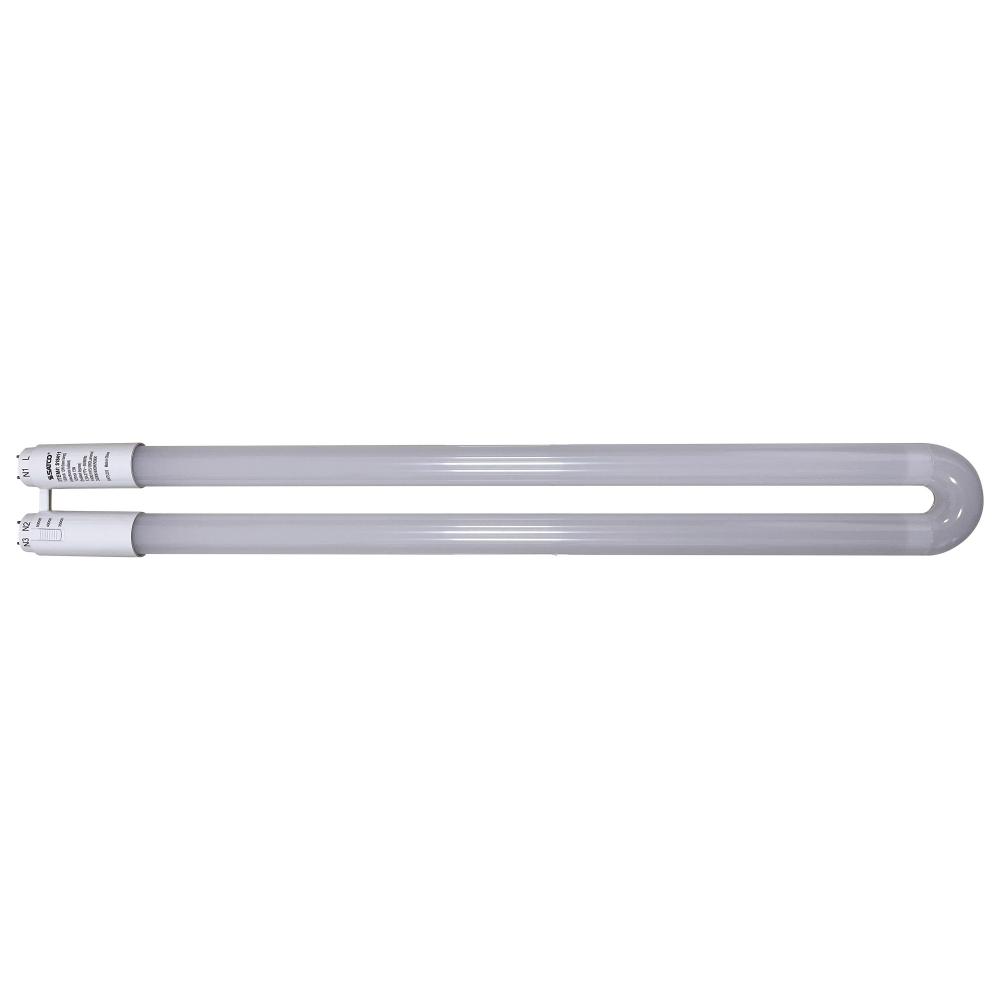

13 Watt T8 U-BEND LED; 50000 Hours; Medium Bi Pin Base; CCT Selectable; Type A/B; White Finish; (S18411)
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
27
06
/
/ 1
($27.06 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
S18411
Dimensions:
Width: 1.00"
Availability:
- Manufacturer has 3044 items available.
Description
Details
Downloads
13 Watt T8 U-BEND LED; 50000 Hours; Medium Bi Pin Base; CCT Selectable; Type A/B; White Finish; 120-277 Volt
Category:
Lamps
Subcategory:
LED Lamps
Lumens:
1601-2600
Kelvin:
3501-4000
Wattage:
13w
Category:
LED
Sub-Category:
LED T8 U Bend
Volts:
120V-277V
Bulb Dimmable:
Yes-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
3500K/4000K/5000K
Bulb Shape:
T8
Diameter:
1
EA Length:
22.83
Harmonized Codes:
8539.52.0051
Length:
22.6
Lumens:
1900L/1975L/1950L
Shap Carton Width:
4.88
Ship Carton Height:
1.18
Ship Weight:
0.53
Warranty:
5 Year Limited - T8 LED Bulbs
Additional Info:
Replaces FB31T8/U1
BAA Compliant:
No
Ballast Bypass Direct:
Dual
Ballasting Requirements:
Ballast required (Type A) or Ballast Bypass (Type B)
Beam Spread:
160
Bulb ANSI Base:
G13
Bulb Base:
Medium Bi Pin
Bulb Finish:
White
Burning Position:
Universal
CA Prop-65:
Lead
Carton Cubic Feet:
0.013
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Neutral White to Natural Light
Country of Origin:
China
CRI:
80
Dimmable Function:
Only in Type A mode; Check Ballast MFG for Dimmer Compatibility
DLC Approved:
Yes
DLC Classification:
Standard
DLC ID:
S-KA0DXR
DLC Primary Use:
Dual Mode Internal Driver (UL Type A and Type B)
Efficacy:
146.15/151.92/150.00 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Feature 1:
CCT Selectable
Feature 2:
Dual mode models compatible with ballast or in ballast bypass configurations
Feature 3:
Shatterproof tube
Feature 4:
Single or double-ended wiring when installed for ballast bypass operation
Feature 5:
Compatible with select emergency backup and dimming ballasts
Feature 6:
5-Year warranty
Feature 7:
1.625 inch leg spacing
Feature 8:
Medium Bi Pin base
Flicker Free:
No
Flourescent Equivalent:
32W
Housing Color:
White
Incandescent Equivalent:
50W
Indoor Outdoor:
Indoor
IP Rating:
IP20
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type A/B
Lamp End Type:
Single Ended;Double Ended
Lamp Filament:
LED
Leg Spacing:
1.625
Lens Finish:
Frost
Lens Material:
Plastic
Location Rating:
Damp
Long Description:
SATCO|NUVO'S S18411 LED T8 U-Bend lamp is CCT selectable to provide versatility in a range of applications. This 1-inch model is Dual Mode to operate in ballast bypass or ballast compatible configuration. This lamp can be easily installed with single-e
Material:
Plastic
Nominal Length:
22.5
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Color Box
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
14
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO'S LED T8 U-Bend lamps are CCT selectable and available in 1 inch, 3 inch, and 6 inch models to provide versatility in a range of applications. 1 inch and 6 inch models are Dual Mode to operate in ballast bypass or ballast compatible configur
SDS class:
LED_Lamp
Short Description:
13T8/U1/LED/CCT/DUAL/SE-DE
Technology:
LED
Title 20 Compliant:
No
Total Harmonic Distortion:
20%
Wattage Selectable:
No
Watts:
13W
