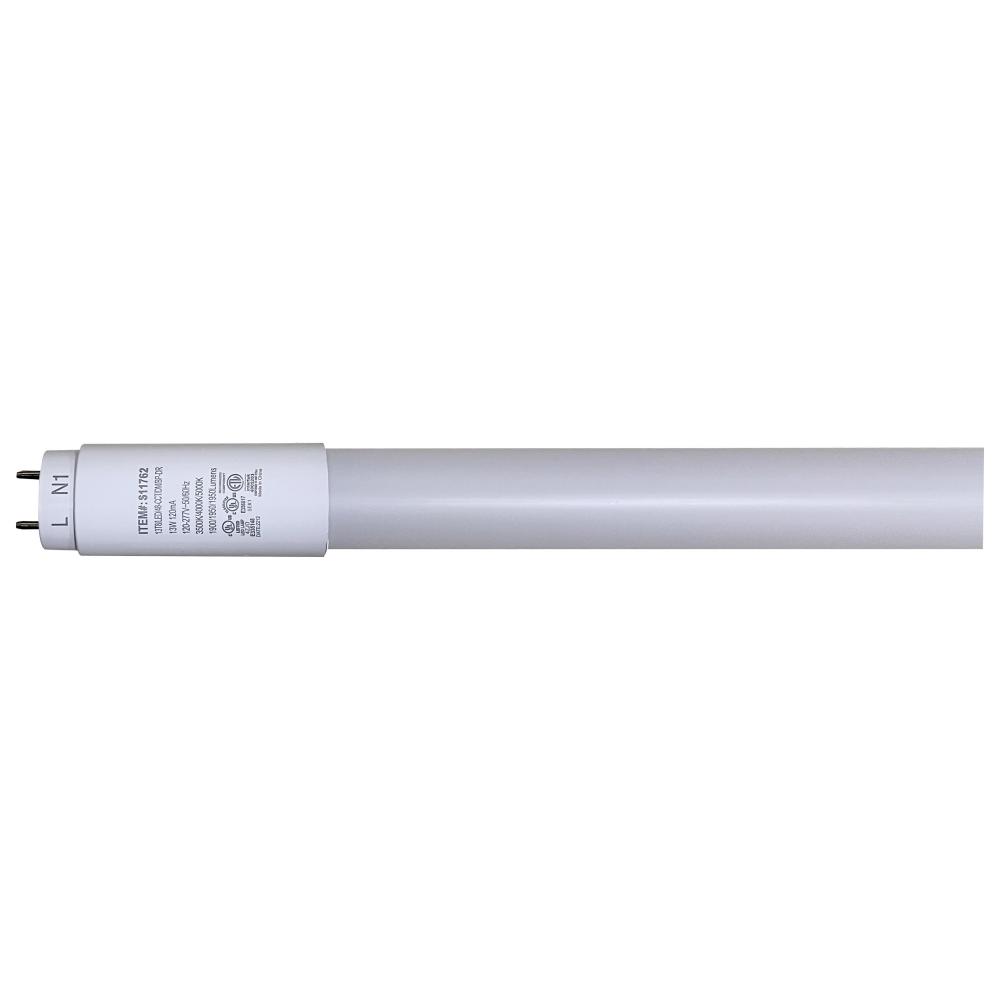

13T8/LED/48-CCT/DM/BP-DR (S11762)
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
17
36
/
/ 1
($17.36 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
S11762
Dimensions:
Width: 1.00"
Availability:
- Manufacturer has 8897 items available.
Description
Details
Downloads
13 Watt T8 LED; CCT Selectable; Medium bi-pin base; 50000 Hours; Type A/B; Ballast Bypass or Direct Replacement; Single or Double Ended Wiring; Glass with PET coating
Category:
Lamps
Subcategory:
LED Lamps
Category:
LED
Sub-Category:
LED T8
Volts:
120V-277V
Bulb Hours:
50000
Bulb Kelvin:
3500K/4000K/5000K
Bulb Shape:
T8
Diameter:
1
Dimmable:
Yes-Dimmable
Harmonized Codes:
8539.52.0051
Length:
47.78
Lumens:
1900L/1950L/1950L
Ship Carton Height:
1
Ship Carton Length:
48
Ship Carton Width:
1
Ship Weight:
0.65
Warranty:
5 Year Limited - T8 LED Bulbs
BAA Compliant:
No
Ballast Bypass Direct:
Dual
Ballasting Requirements:
Ballast required (Type A) or Ballast Bypass (Type B)
Beam Spread:
180
Bulb ANSI Base:
G13
Bulb Base:
Medium Bi Pin
Bulb Finish:
White
Burning Position:
Universal
Carton Cubic Feet:
0.0278
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Neutral White to Natural Light
Country of Origin:
China
CRI:
83
Dimmable Function:
Only in Type A mode; Check Ballast MFG for Dimmer Compatibility
DLC Approved:
Yes
DLC Classification:
Standard
DLC ID:
S-0VNZRQ
DLC Primary Use:
Dual Mode Internal Driver (UL Type A and Type B)
Enclosure Rating:
Yes
FCC Compliant:
Yes
Feature 1:
CCT Selectable - 3500K/4000K/5000K
Feature 2:
Direct replacement for fluorescent T8 lamps
Feature 3:
Ballast compatible or ballast bypass installation
Feature 4:
NSF Certified - P.E.T. coated, shatter resistant glass tube
Feature 5:
Compatible with select emergency backup and dimming ballasts
Feature 6:
Dimmable
Feature 7:
Rated for 50,000 hours
Fluorescent Equivalent:
28W
Housing Color:
White
Incandescent Equivalent:
50W
IOT Enabled:
No
IP Rating:
IP20
Lamp Ballast Type A/B/C:
Type A/B
Lamp Filament:
LED
Lens Finish:
Frost
Lens Material:
Glass
Location Rating:
Damp
Material:
Glass / Plastic
Nominal Length:
48
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
25
Pack Type:
Sleeve
Power Factor:
0.9
Quantity In Pack:
1
Rated For Vapor Tight Fixture:
No
RoHS Compliant:
Yes
SDS class:
LED_Lamp
Shatter Proof Text:
PET Coated
Technology:
LED
Wattage Selectable:
No
Watts:
13W
