15T8/LED/48-CCT/EM/BP (S11730)
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
85
90
/
/ 1
($85.90 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
S11730
Dimensions:
Width: 1.13"
Availability:
- Manufacturer has 9262 items available.
Description
Details
Downloads

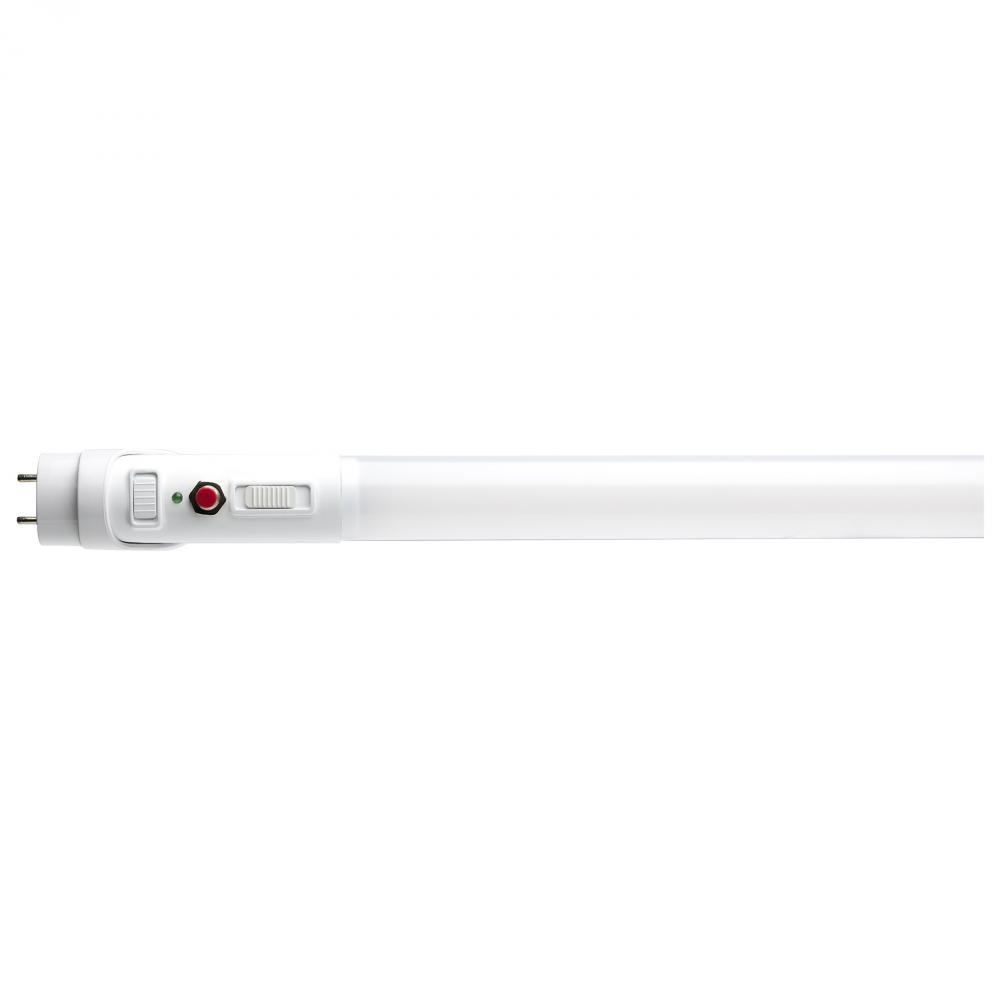

15 Watt 48 Inch T8 LED; CCT Selectable; Ballast Bypass with Battery Backup; G13 Base; 120-277 Volt
Category:
Lamps
Subcategory:
LED Lamps
Category:
LED
Sub-Category:
LED T8
Volts:
120V-277V
Bulb Hours:
50000
Bulb Kelvin:
3500K/4000K/5000K
Bulb Shape:
T8
Diameter:
1.13
Harmonized Codes:
8539.52.0051
Length:
47.78
Lumens:
1850L/2000L/1900L
Ship Carton Height:
1.34
Ship Carton Length:
48.11
Ship Carton Width:
2.05
Ship Weight:
1.08
Warranty:
5 Year Limited - T8 LED Bulbs - Ballast Bypass
Weight:
0.99
Additional Info:
3.5 Watts and 500 Lumens in Emergency Mode
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
140
Bulb ANSI Base:
G13
Bulb Base:
Medium Bi Pin
Bulb Finish:
White
Burning Position:
Horizontal
Carton Cubic Feet:
0.0765
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Country of Origin:
China
CRI:
83
DLC Approved:
Yes
DLC Classification:
Standard
DLC ID:
S-U53N8J
DLC Primary Use:
Internal Driver/Line Voltage (UL Type B) Lamps
Enclosure Rating:
Not for use in fully enclosed vapor tight fixtures
, Yes
FCC Compliant:
Yes
Feature 1:
Provides up to 90 minutes of illumination during power outages
Feature 2:
Battery On/Off switch conserves battery after installation
Feature 3:
Integrated aluminum heatsink to promote heat dissipation
Feature 4:
Features ColorQuick technology, allowing for easy selection of CCT at installation
Feature 5:
5 Year Warranty
Fluorescent Equivalent:
32W
Has Driver:
Yes
Has Emergency Battery:
Yes
Housing Color:
White
Incandescent Equivalent:
75W
Indoor Outdoor:
Indoor
Installation Notes:
Maximum Mounting Height: 13 Feet
IOT Enabled:
No
IP Rating:
IP20
Lamp Ballast Type A/B/C:
Type B
Lamp Filament:
LED
Lens Finish:
Frost
Lens Material:
Polycarbonate (PC)
Location Rating:
Damp
Material:
Aluminum
Nominal Length:
48
NSF Approved:
Yes
Operating Frequency:
60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Pack Type:
Box
Power Factor:
0.9
Quantity In Pack:
1
RoHS Compliant:
Yes
SDS class:
LED_Lamp
Shatter Proof Text:
Yes
Specification Notes:
Height at switch: 1.30 Inches; Work time after power failure: 90 Minutes; Battery Recharge Time is 24 hours
Technology:
LED
Tube Guard Use:
No
Wattage Selectable:
No
Watts:
15W
