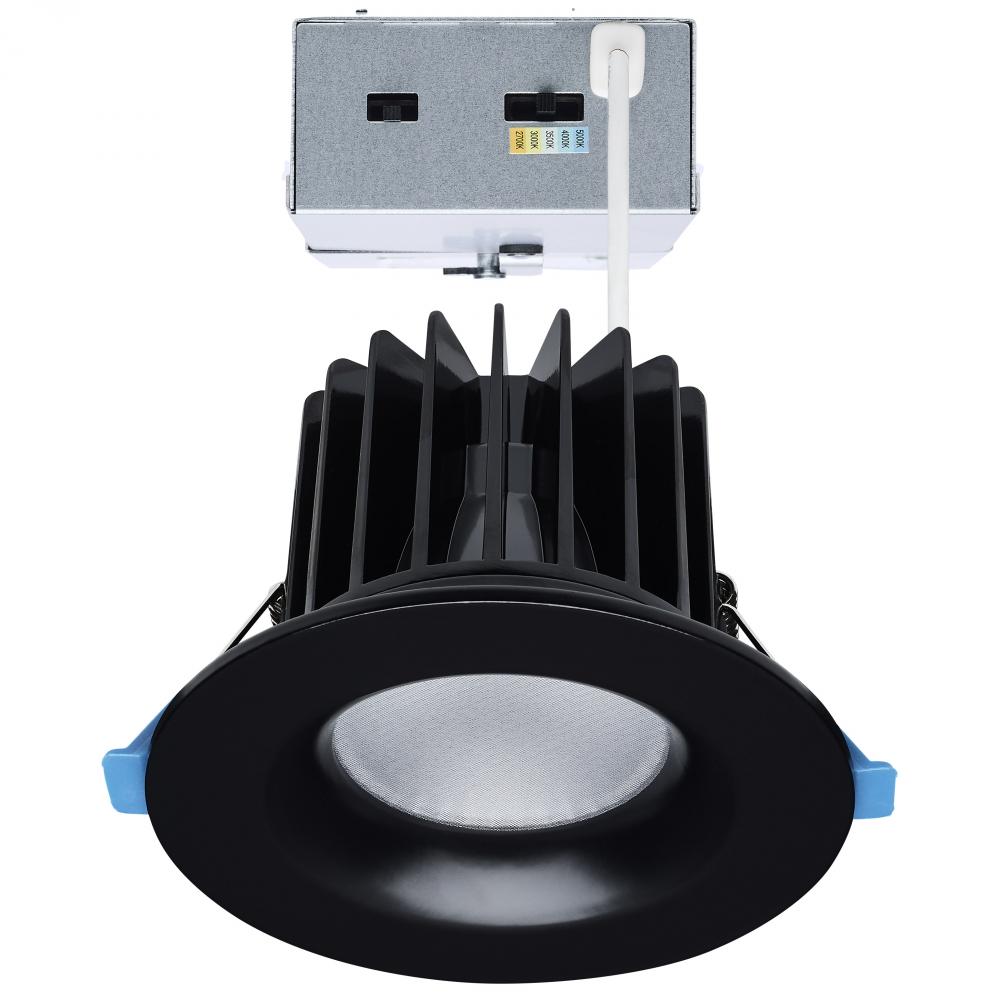

16/20/24 Watt LED Remote Driver Downlight; 27K/30K/35K/40K/50K CCT; Field Selectable; Round; Black (S11671)
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
69
90
/
/ 1
($69.90 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
S11671
Dimensions:
Height: 3.62"
Width: 5.20"
Black
Availability:
- Manufacturer has 603 items available.
Recommended Items
Description
Details
Downloads
16/20/24 Watt LED Remote Driver Downlight; 27K/30K/35K/40K/50K CCT; Field Selectable; Round; Black Finish; Dual Dimming; 120-277 Volt
Category:
Recessed Ltg.
Subcategory:
Other Recessed Ltg.
Option:
Energy Star
, LED
, Prop 65
Category:
Recessed
Sub Category:
Direct Wire
Bulb Hours:
50000
Bulb Kelvin:
Warm White to Natural Light
Bulb Shape:
Integrated LED
Bulb Type:
LED
Diameter:
5.2
Dimmable:
Yes-Dimmable
Harmonized Codes:
9405.11.6010
Lumens:
1300L/1600L/2000L
Ship Carton Height:
6.69
Ship Carton Length:
10.04
Ship Carton Width:
5.31
Warranty:
5-Years
Air Tight:
Yes
Amps:
0.133-0.058/0.167-0.072/0.200-0.087A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Spread:
40
CA Prop-65:
Lead
Can Size:
3 in.
Carton Cubic Feet:
0.2064
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
California T24 2016 - 2025 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Closet Rated:
Yes
Connection:
Direct Wired
Country Of Origin:
Thailand
CRI:
90+
Dimmable Down To:
100 to 10 percent
Dimmable Function:
Dual Dimming: Phase-Cut and 0-10V
Dimming Type:
Dual Dimming
Efficacy:
81.25/80.00/83.33 LPW
ES Category:
Downlight Recessed
ES Unique ID:
ESID-3999682
FCC Compliant:
Yes
Feature 1:
Round Trim, Black Finish
Feature 10:
NEC Compliant Junction Box
Feature 2:
High Output: 1300/1600/2000 Lumens
Feature 3:
16W/20W/24W Wattage Selectable (125W Replacement)
Feature 4:
2700K/3000K/3500K/4000K/5000K CCT Selectable
Feature 5:
Dual-Dimming
Feature 6:
90 CRI
Feature 7:
40-Degree Beam Angle
Feature 8:
Aluminum Trim with Polycarbonate Lens
Feature 9:
FT6 Cable Included for Commercial Plenums
Finish Family:
Black
Fixture shape:
Round
Has Camera:
No
Has Emergency Battery:
No
IC Rated:
Yes
Incandescent Equivalent:
125W
Indoor Outdoor:
Indoor
IOT Enabled:
No
JA8 Compliant:
Yes
Lens Finish:
Clear Prismatic
Lens Material:
Polycarbonate (PC)
Long Description:
SATCO NUVO S11671 LED Architectural Downlights offer a high lumen output, making them ideal for high ceiling applications. With a 40-degree beam angle, these downlights provide ample illumination in residential, hospitality and retail applications. Choose
Material:
Aluminum
Mounting Diameter:
3.62
Mounting Height:
4
Mounting Procedure:
Recessed Direct Wire
NEC Compliance:
Clothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)
Operating Frequency:
50/60Hz
Operating Temprature:
-20C (-4F) to +40C (+104F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
50
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO LED Architectural Downlights offer a high lumen output, making them ideal for high ceiling applications. With a 40-degree beam angle, these downlights provide ample illumination in residential, hospitality and retail applications. Choose from th
Safety Listing:
cETLus - Listed
SDS class:
LED_Fixture
Short Description:
24WLED/DW/DNL3/FS/RND/DD/BK
Sloped Ceiling Compatible:
No
Specification Notes:
Default wattage setting: 20W
Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
Yes
Total Harmonic Distortion:
<20%
Trim Material:
Aluminum
Wattage Selectable:
Yes
Weight Lb.:
2.17
