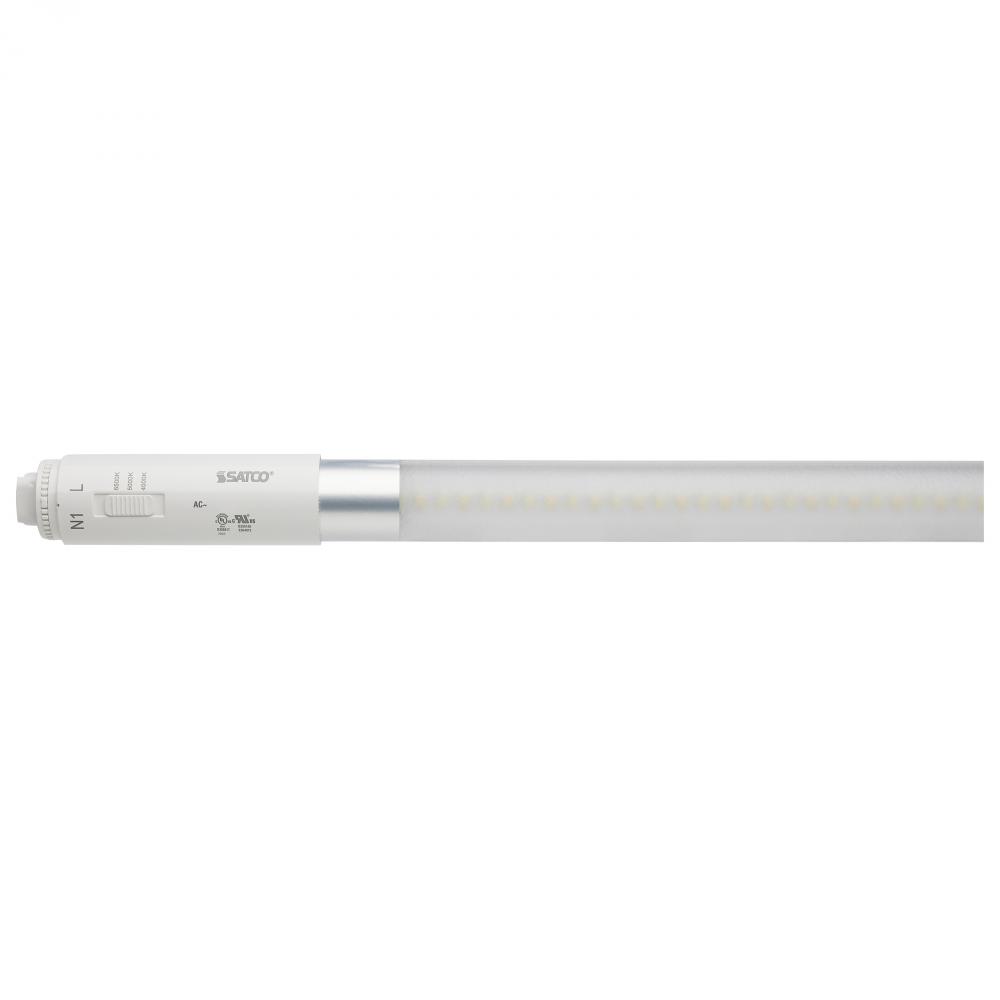

26 Watt T8 LED; CCT Selectable; 120-277 Volt; Single or Double Ended; Type B Ballast Bypass (S16437)

Image may not reflect selected features
No Image
Available
26 Watt T8 LED; CCT Selectable; 120-277 Volt; Single or Double Ended; Type B Ballast Bypass
additional image
BASE PRICE:
$
47
90
/ / 1
($47.90 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
S16437
Dimensions:
Width: 1.13"
White
Availability:
  • Manufacturer has 2463 items available.
Description
Details
Downloads
26 Watt T8 LED; CCT Selectable; 120-277 Volt; Single or Double Ended; Type B Ballast Bypass
Category:
Lamps
Subcategory:
LED Lamps
Lumens:
3300+
Kelvin:
4001-4500
Category:
LED
Sub-Category:
LED T8
Volts:
120V-277V
Bulb Dimmable:
Egg Crate
Bulb Hours:
50000
Bulb Kelvin:
4000K/5000K/6500K
Bulb Shape:
T8
Diameter:
1.13
EA Length:
64
Harmonized Codes:
8539.52.0051
Length:
61.81
Lumens:
3650L/3750L/3600L
Shap Carton Width:
1.15
Ship Carton Height:
1.15
Ship Weight:
1.59
Warranty:
Yes
Weight:
1.02
BAA Compliant:
No
Ballasting Requirements:
Ballast Bypass
Beam Spread:
360
Bulb ANSI Base:
R17d
Bulb Base:
Recessed Double Contact HO/VHO
Bulb Finish:
White
Burning Position:
Universal
Carton Cubic Feet:
0.049
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
5 Year Limited - T8 LED Bulbs
Country Of Origin:
China
CRI:
83
DLC Approved:
No
DLC Classification:
CCT Selectable
Efficacy:
140.38/144.23/138.46 LPW
Enclosed Fixture Use:
Yes
Energy Star Category:
ColorQuick
FCC Compliant:
Yes
Feature 1:
4000K/5000K/6500K CCT Selectable
Feature 2:
Double sided LED for 360 degrees of illumination
Feature 3:
UL Type B - Ballast bypass installation
Feature 4:
Rated for 50,000 hours
Feature 5:
120-277 Volts
Feature 6:
Damp location rated
Feature 7:
FCC and RoHS compliant
Flourescent Equivalent:
80W
Incandescent Equivalent:
100W
Indoor Outdoor:
Cool White to Daylight
Installation Notes:
Not for use in vapor tight fixtures.
IP Rating:
IP20
JA8 Compliant:
No
Lamp End Type:
Single Ended;Double Ended
Lamp Filament:
Non-Dimmable
Lens Finish:
Indoor
Lens Material:
LED
Location Rating:
Type B
Long Description:
SATCO|NUVO's S16437, 26-watt T8 lamp is the perfect lighting solution for balancing energy efficiency, advanced technology, and style. This double sided LED lamp delivers 360 degrees of illumination in 4000K, 5000K, or 6500K CCT. Color temperature and
Material:
Lumileds
Nominal Length:
64
NSF Approved:
ETL Sanitation listed (conforms to NSF)
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
10
Pack Type:
cULus - Certified;cULus - Classified;cRUus - Recognized Component
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
9
RoHS Compliant:
Linear
Romance Copy:
SATCO|NUVO's LED T8 Sign Lamps are the ideal lamp to replace traditional T8 lamps. With fourteen sizes from 18 inches to 120 inches, these lamps can fit virtually any size sign cabinet. Easily install the lamps with direct single or double-ended wiring
SDS class:
LED_Lamp
Short Description:
26T8/LED/HO-SIGN/64-3CCT/BP/SE
Start Type:
Utility
Surge Protection:
Built-in surge protection - 1KV
Technology:
LED
Title 20 Compliant:
No
Title 24 Compliant:
No
Total Harmonic Distortion:
25%
Tube Guard Use:
No
Wattage Selectable:
No
Watts:
26W
