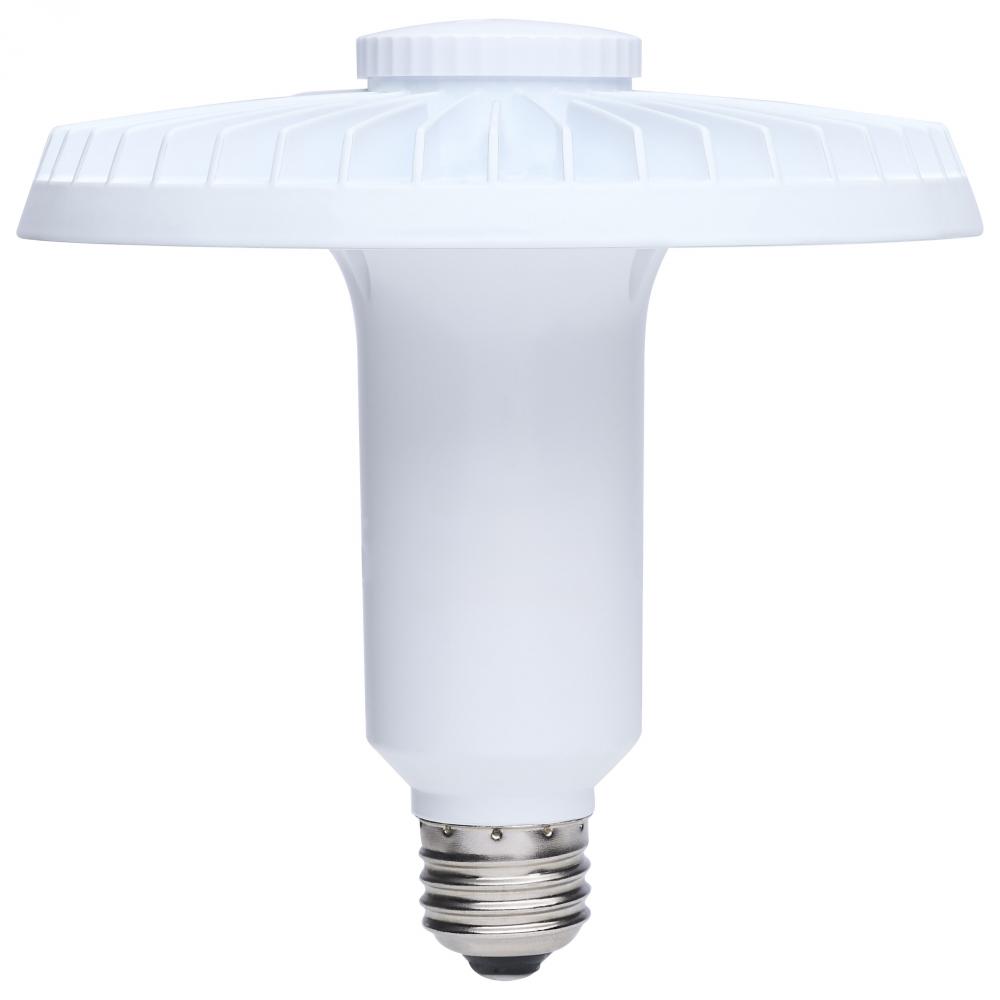

40/30/20 Watt LED HID Replacement; 3K/4K/5K CCT Selectable; Ballast Bypass; Medium Base; 120-277 (S13148)
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
55
90
/
/ 1
($55.90 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
S13148
Dimensions:
Width: 5.69"
Clear
Availability:
- Manufacturer has 1490 items available.
Description
Details
Downloads
40/30/20 Watt LED HID Replacement; 3K/4K/5K CCT Selectable; Ballast Bypass; Medium Base; 120-277 Range Voltage
Category:
Light Bulbs
Subcategory:
LED Bulbs
Category:
LED
Sub-Category:
HID Replacements
Volts:
120V-277V
Bulb Dimmable:
Yes-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
3000K/4000K/5000K
Bulb Shape:
Corncob
Diameter:
5.69
EA Length:
6.69
Harmonized Codes:
8539.52.0091
Length:
5.68
Lumens:
5800L-6400L/4350L-4800L/2900L-3200L
Shap Carton Width:
6.69
Ship Carton Height:
7.05
Ship Weight:
1.95
Warranty:
5-Years
Weight:
1.04
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
120
Bulb ANSI Base:
E26
Bulb Base:
Medium
Bulb Finish:
Clear
Burning Position:
Base Down
Carton Cubic Feet:
0.1826
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
Exempt - >2600 Lumens
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Soft White to Natural Light
Country Of Origin:
Malaysia
CRI:
80
Dimmable Function:
Only dimmable through wattage selection switch on lamp. NOT dimmable with wall dimmers or any other dimming controls.
Dimming Type:
Step Dimming
DLC Approved:
No
Efficacy:
145.00/160.00/152.00 LPW
Enclosed Fixture Use:
Yes
FCC Compliant:
Yes
Feature 1:
3 CCT Selectable
Feature 2:
20/30/40 Wattage Selectable
Feature 3:
Helps Control Light Pollution
Feature 4:
Downward Directional Lighting
Feature 5:
Enclosed fixture rated
Feature 6:
IP65 Watertight Seal Cap
Feature 7:
4kV Surge Protection
Feature 8:
50,000 Hour Functional Life
Feature 9:
5 Year Warranty
Has Camera:
No
Has Emergency Battery:
No
HID Equivalent:
150W-175W
Housing Color:
White
Indoor Outdoor:
Indoor and Outdoor
IOT Enabled:
No
IP Rating:
IP65
Lamp Ballast Type A/B/C:
Type B
Lamp Filament:
LED
Lens:
Yes
Lens Finish:
Translucent
Lens Material:
Polycarbonate (PC)
Location Rating:
Wet
Long Description:
Illuminate outdoor spaces with SATCO NUVO's S13148 LED post top lamp. Featuring an E26 base, 20/30/40 wattage selection, and 2,900–6,400 lumens, it enhances visibility while reducing light pollution. Improved light shielding and a downward beam minim
Material:
Aluminum
Operating Frequency:
50/60Hz
Operating Temp:
-25C (-13F) to +50C (+122F)
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
RoHS Compliant:
Yes
Romance Copy:
Illuminate outdoor spaces using SATCO NUVO's new LED post top lamps, crafted to enhance visibility while helping to reduce light pollution. Designed with improved light shielding and a downward directional beam, these lamps minimize up light and elimin
SDS class:
LED_Lamp
Short Description:
40HID/L/CCT3/E26/B/U
Surge Protection:
Built-in surge protection - 4KV
Technology:
LED
Title 20 Compliant:
Exempt
Total Harmonic Distortion:
<20%
Wattage Selectable:
Yes
Watts:
40W/30W/20W
