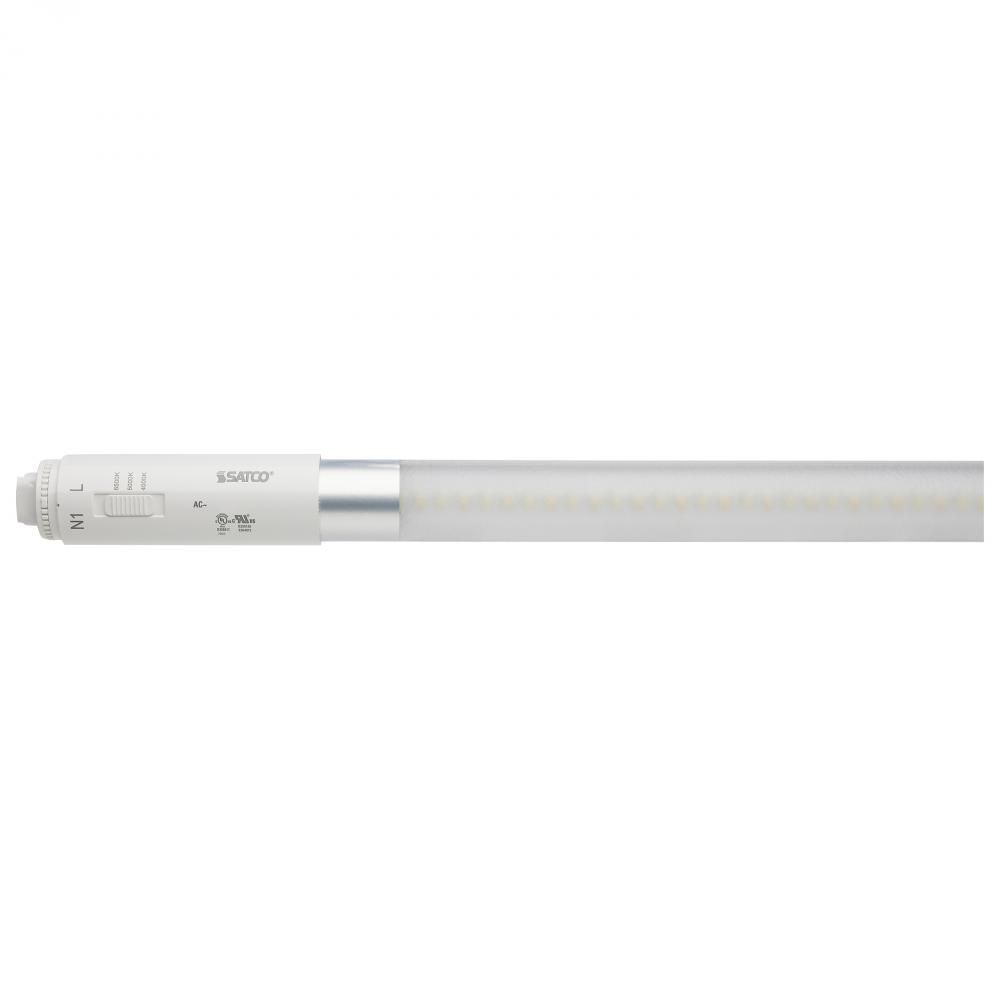

9 Watt T8 LED; CCT Selectable; 120-277 Volt; Single or Double Ended; Type B Ballast Bypass (S16431)

Image may not reflect selected features
No Image
Available
9 Watt T8 LED; CCT Selectable; 120-277 Volt; Single or Double Ended; Type B Ballast Bypass
additional image
BASE PRICE:
$
25
90
/ / 1
($25.90 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
S16431
Dimensions:
Width: 1.13"
Availability:
  • Manufacturer has 530 items available.
Description
Details
Downloads
9 Watt T8 LED; CCT Selectable; 120-277 Volt; Single or Double Ended; Type B Ballast Bypass
Category:
Lamps
Subcategory:
LED Lamps
Lumens:
1101-1600
Kelvin:
4001-4500
Category:
LED
Sub-Category:
LED T8
Volts:
120V-277V
Bulb Dimmable:
Non-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
4000K/5000K/6500K
Bulb Shape:
T8
Diameter:
1.13
EA Length:
24
Harmonized Codes:
8539.52.0051
Length:
21.81
Lumens:
1250L/1300L/1200L
Shap Carton Width:
1.15
Ship Carton Height:
1.15
Ship Weight:
0.51
Warranty:
5 Year Limited - T8 LED Bulbs
Weight:
0.33
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
360
Bulb ANSI Base:
R17d
Bulb Base:
Recessed Double Contact HO/VHO
Bulb Finish:
White
Burning Position:
Universal
Carton Cubic Feet:
0.0184
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Cool White to Daylight
Country Of Origin:
China
CRI:
83
DLC Approved:
No
Efficacy:
138.89/144.44/133.33 LPW
Enclosed Fixture Use:
Yes
FCC Compliant:
Yes
Feature 1:
4000K/5000K/6500K CCT Selectable
Feature 2:
Double sided LED for 360 degrees of illumination
Feature 3:
UL Type B - Ballast bypass installation
Feature 4:
Rated for 50,000 hours
Feature 5:
120-277 Volts
Feature 6:
Damp location rated
Feature 7:
FCC and RoHS compliant
Flourescent Equivalent:
35W
Incandescent Equivalent:
40W
Indoor Outdoor:
Indoor
Installation Notes:
Not for use in vapor tight fixtures.
IP Rating:
IP20
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp End Type:
Single Ended;Double Ended
Lamp Filament:
LED
Lens Finish:
Frost
Lens Material:
Plastic
Location Rating:
Damp
Long Description:
SATCO|NUVO's S16431, 9-watt T8 lamp is the perfect lighting solution for balancing energy efficiency, advanced technology, and style. This double sided LED lamp delivers 360 degrees of illumination in 4000K, 5000K, or 6500K CCT. Color temperature and l
Material:
Polycarbonate (PC)
Nominal Length:
24
NSF Approved:
ETL Sanitation listed (conforms to NSF)
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Pack Type:
Egg Crate
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
13
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's LED T8 Sign Lamps are the ideal lamp to replace traditional T8 lamps. With fourteen sizes from 18 inches to 120 inches, these lamps can fit virtually any size sign cabinet. Easily install the lamps with direct single or double-ended wiring
SDS class:
LED_Lamp
Short Description:
9T8/LED/HO-SIGN/24-3CCT/BP/SE-
Surge Protection:
Built-in surge protection - 1KV
Technology:
LED
Title 20 Compliant:
No
Total Harmonic Distortion:
25%
Tube Guard Use:
No
Wattage Selectable:
No
Watts:
9W
