Designed by Chicago architect Stephen Katz in 2013, the Eliza blends a beautiful technically derived form with superior function and movement. The unique blade shape is designed to maximize air movement at the outer edge of the blade. The result is more efficient air velocity rings, less blade drag and greater motor optimization. Equally important is the Eliza fan’s stationary visual statement which combines modern utility with minimalist geometry.

With superior function and movement the unique blade shape is designed to maximize air movement at the outer edge of the blade. The result is more efficient air velocity rings, less blade drag and greater motor optimization.

Category:

Fans

Subcategory:

Ceiling Fans

Finish:

White

Style:

Contemporary , Traditional , Transitional

Option:

Outdoor , Title 20

Location Rating:

Wet Rated

Category:

Ceiling Fan

Finish:

Gloss White

Style:

Contemporary, Transitional

Option:

Outdoor , Title 20

Family:

Eliza

Air Flow Efficiency:

183

Amperage:

0.5

Blade Finish:

Gray Ash Tone

Blade Pitch:

Blade Span:

Canopy:

6 W x 6 D x 2 H

Designer:

Stephen Katz

Down Rod Included:

Introduction Date:

01/01/2017

Keyword(s):

Bedroom, Dining Room, Entryway, Foyer, Hallway, Kitchen, Living Room, Office, Patio, Basement, Gym

Light Kit Included:

Material:

Cast Aluminum, Polycarbonate, Heavy Stamped Steel

Max Height:

Motor Type:

Order Minimum:

Ship Carton Height:

Ship Carton Length:

Ship Carton Width:

Ship Weight:

Vendor Ship Method:

Small Parcel

Warranty:

Limited Lifetime

Weight:

Assembly Required:

Yes

Blade Material:

ABS

Blade Size:

Blade Width:

CFM Average:

3474

CFM High:

5308

CFM Low:

1639

Color:

White, Gray

Commercial or Residential Use:

Both

Control Frequency 110V:

304Mhz

Control Frequency 220V:

434Mhz

Country of Origin:

China

Downrod Diameter:

Fan Wattage at High Speed:

33.13

Hanging Type:

Downrod

Height Adjustable:

Yes

Included Control:

Remote Control, Wall Control

Indoor:

Yes

IP Rating:

IP21

Marine Rated:

Material Percentage:

50% Cast Aluminum, 50% Heavy Stamped Steel

MIN Height:

Motor Reversible:

Yes

Motor/Housing Finish:

Gloss White

Noise Level:

Silent

Number of Blades:

Number of Boxes:

Number Of Speeds:

Oscillates:

Outdoor:

Yes

Prop 65 Description:

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.P65Warnings.ca.gov.

Returnable:

Yes

RPM High:

153

RPM Low:

Safety Rating:

ETL Approved, CETL Approved

Ship Container:

Box

Ship Lead Time:

3 Days

Sloped Ceiling Compatible:

Yes

Title 20:

Yes

Additional Information:

0.5 AMP
7" Height from floor
ABS All weather System protected blades.
Compatible with slanted ceilings up to 30 degrees for flexible installation. Optional 60 degrees cathedral canopy mounting system available
Constructed of cast aluminum and heavy stamped steel
Energy efficient, ultra-quiet, six speed, reversible DC motor with new, reliable technology.
Enhance comfort and efficiency throughout different seasons by adjusting the direction of airflow with the reverse function
Ideal for great rooms, large basements, or open-concept living areas.
IP21
One six speed hand-held and one six speed decora style, white wall mounted control. Both controls reverse direction of fan.
Oversized: Rooms over 400 sq. ft. 56 inches or larger blade span
Silent operation for cooling without noise
Standard Equipment: 10" Downrod. Additional downrod lengths are available and sold separately to achieve the optimal look and functionality for your space
Suitable for fully exposed outdoor areas such as open decks, pergolas, and gazebos and designed to withstand all weather conditions

Click Here to View FTC 2 Label

Click Here to View Installation Manual

Click Here to View Spec Sheet

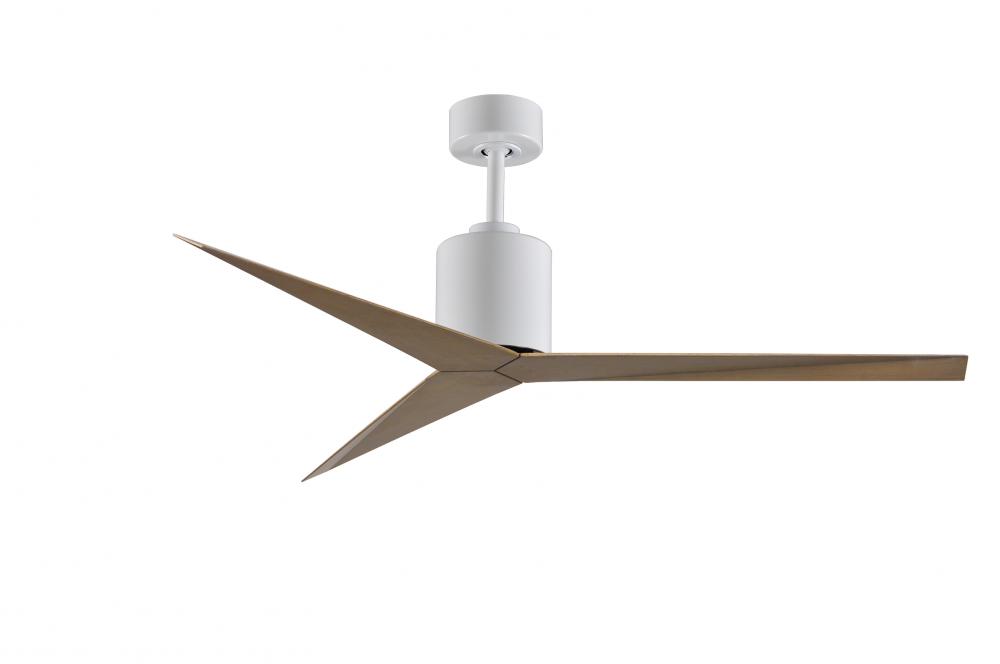

Eliza - Ceiling Fan - Gloss White Finish - Gray Ash Tone Blades (EK-WH-GA)

Eliza - Ceiling Fan - Gloss White Finish - Gloss White Blades (EK-WH-WH)
